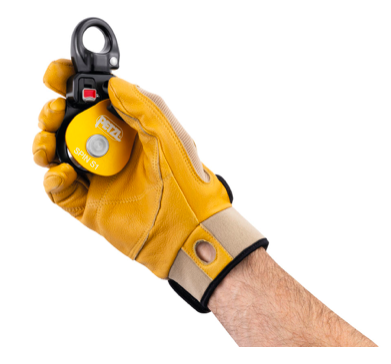

PETZL SPIN S1
Very high efficiency, compact single pulley with swivel
Possible to open, even when attached to the anchor, the SPIN S1 OPEN pulley is designed for maximum simplicity in setting up haul or load deviation systems and tensioned highlines. Compact, reducing weight and bulk, which is especially useful during technical rescue. The sheave with sealed ball bearings provides excellent efficiency. The swivel facilitates operations, allowing the pulley to be oriented under load and direct connection of carabiners, ropes, or slings.
Very high efficiency, compact single pulley with swivel
Possible to open, even when attached to the anchor, the SPIN S1 OPEN pulley is designed for maximum simplicity in setting up haul or load deviation systems and tensioned highlines. Compact, reducing weight and bulk, which is especially useful during technical rescue. The sheave with sealed ball bearings provides excellent efficiency. The swivel facilitates operations, allowing the pulley to be oriented under load and direct connection of carabiners, ropes, or slings.
Very high efficiency, compact single pulley with swivel
Possible to open, even when attached to the anchor, the SPIN S1 OPEN pulley is designed for maximum simplicity in setting up haul or load deviation systems and tensioned highlines. Compact, reducing weight and bulk, which is especially useful during technical rescue. The sheave with sealed ball bearings provides excellent efficiency. The swivel facilitates operations, allowing the pulley to be oriented under load and direct connection of carabiners, ropes, or slings.
Detailed description
Description
Compact pulley designed for maximum simplicity in setting up haul orSPIN S1 Video load deviation systems and tensioned highlines for work at height and technical rescue, when weight and size are important factors:
- Triple-action opening of the moving side plate is quick and easy, even with gloves
- The rope can be installed with the device connected to the anchor
- Red indicator provides a visual warning when the moving side plate is unlocked
- Special side plate design protects the rope pathOptimal efficiency:
- Mid-size diameter sheave mounted on sealed ball bearings for great efficiencyFacilitates operations, thanks to the swivel:
- Allows pulley to be oriented under load
- Ropes or slings can be threaded for easier rigging
- Allows most carabiners to rotate, meeting European standards
Specifications
Weight: 145 g
Certification(s): CE EN 12278, NFPA 2500 Pulley Technical Use, UKCA, UIAA
Material(s): Aluminum, stainless steel, nylon
Min. rope diameter: 7 mm
Max. rope diameter: 11 mm
Sheave type: Sealed Ball Bearings
Sheave diameter: 25 mm
Maximum working load: 2,5 x 2 = 5 kN
Breaking strength: 23 kN
Efficiency: 91 %
